Libra
Shelly Wall Display XL
Hardware
6
Posts
3
Posters
56
Views
3
Watching
-
I don't know if you guys are into dashboards, but I am.
For a second home I tried the Shelly Wall Display 2, and while not so big, it worked well over the summer.

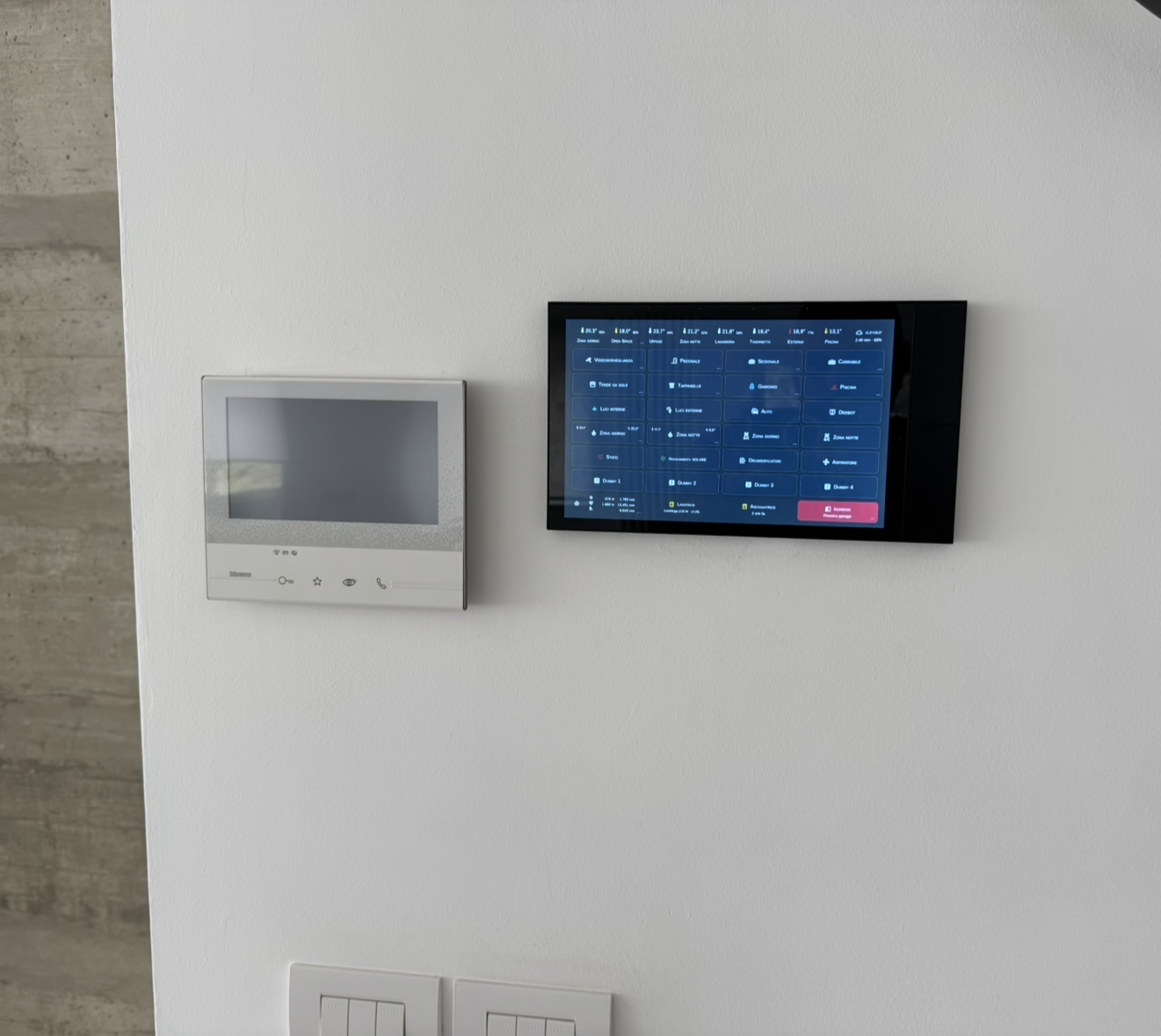

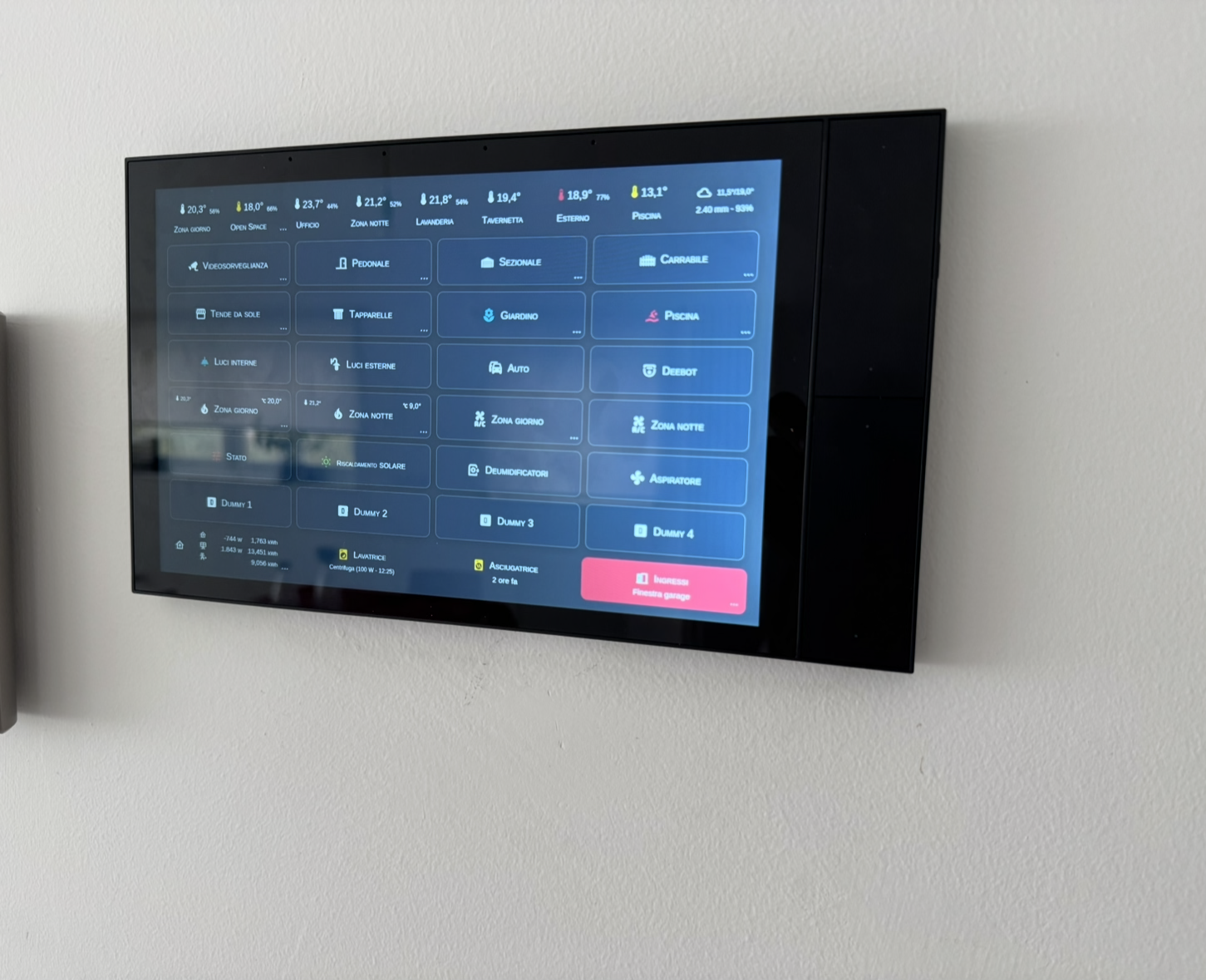

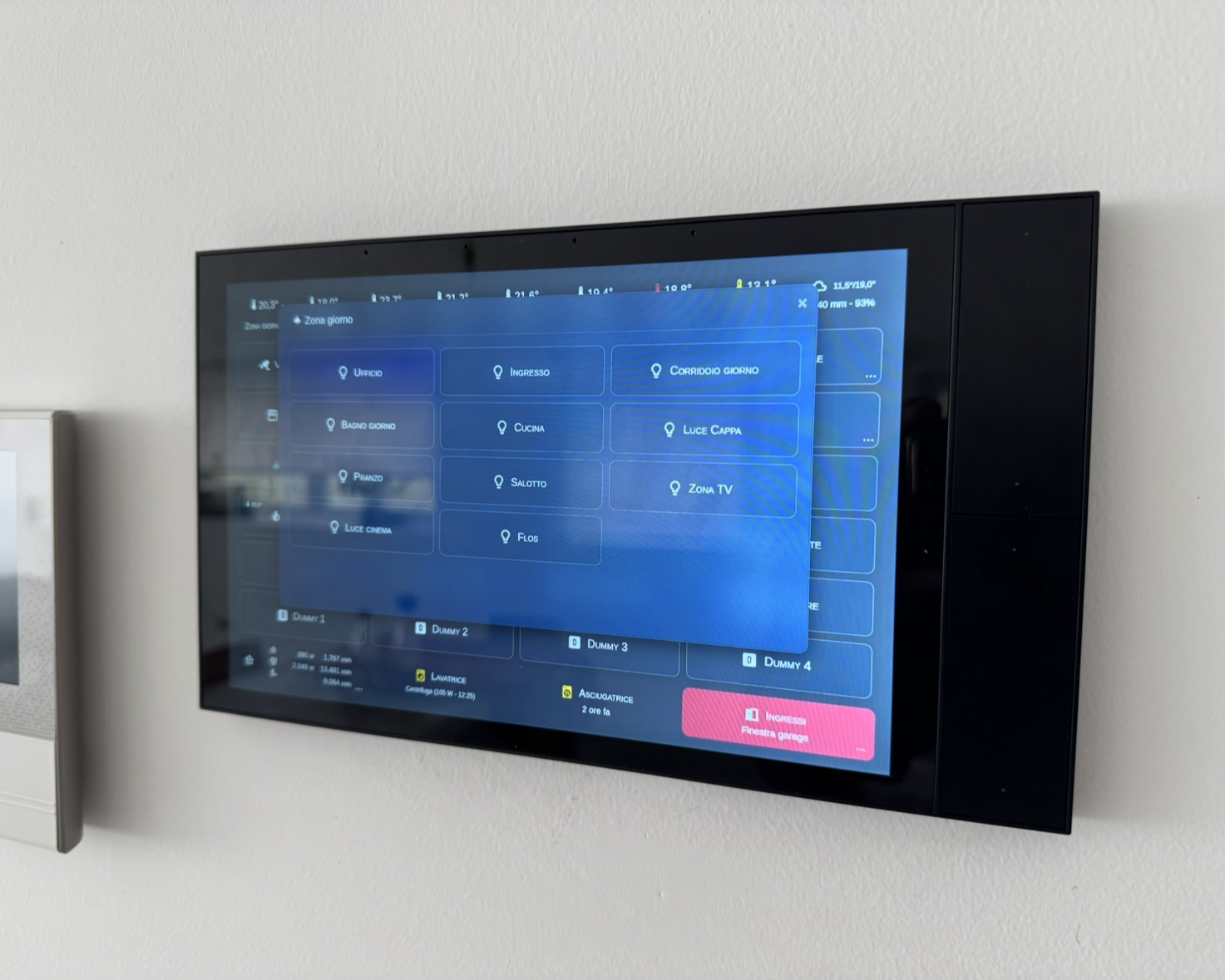

Since we're remodeling our house, I just swapped my old Fire Tablet (with its own problems) with two new Shelly Wall Display XL. I just removed the standard firmware, and I added mine (https://github.com/dbochicchio/ShellyElevate), forked from https://github.com/RapierXbox/ShellyElevate
I just managed to support buttons (this thing has 4 of them) and it's all auto-discovered by Home Assistant and accessible via Reactor.
I also have a new build in the works with support for buttons inside HA.
I added a bonus Javascript interface sending events (screen/screensaver status, buttons, motion) to automatically drive the dashboard (all doing in HTML+Javascript and monitoring Reactor's variable).This specifical thing excluded, go get one of them, the device has a decent CPU for HA dashboards and blends wonderfully in the decor.
-
Thanks! I managed to get the 4 buttons, a nice feature for the wife.
Unfortunately, it's not POE, but it was easy for me to pull a cable. It has a relay, but I'm not using it ATM.
In the coming weeks I'll mount the second one on the second floor. The custom firmware has both MQTT and HTTP APIs, so it's easy to synchronize them.
