Hi to all, I have a bricked vera secure that is replaced with new one. Old vera secure serial numbers are deleted from vera servers so I cannot use it. Vera secure's are orginally Sercomm's NA502 model devices. Recently I install openwrt to the old vera secure unit without problem. Is there any way to use it any automation system with internal z-wave. I install domoticz but I cannot setup internal z-wave unit, it only accept usb zwave radios. Is there any ideas?
-
Hi
I’m looking to rework some code I found online so I can use it on Vera, and while I’ve managed to translate / convert a number of things, I’ve got stuck on a few things it does, around encryption/decryption etc.
All the original Lua code is here - > (https://forum.logicmachine.net/showthread.php?tid=232&pid=16580#pid16580 )
Plus there looks to be a python version too here - > (https://github.com/florianholzapfel/panasonic-viera/issues/9#issuecomment-476919658)
Here’s an extract of the code where AES 128 CBC is required?
function encrypt_soap_payload(data, key, hmac_key, iv) payload = '000000000000' n = #data payload = payload .. string.char(bit.band(bit.rshift(n, 24), 0xFF)) payload = payload .. string.char(bit.band(bit.rshift(n, 16), 0xFF)) payload = payload .. string.char(bit.band(bit.rshift(n, 8), 0xFF)) payload = payload .. string.char(bit.band(n, 0xFF)) payload = payload .. data aes_cbc, err = aes:new(key, nil, aes.cipher(128, 'cbc'), { iv = iv }, nil, 1) ciphertext = aes_cbc:encrypt(payload) sig = encdec.hmacsha256(ciphertext, hmac_key, true) encrypted_payload = encdec.base64enc(ciphertext .. sig) return encrypted_payload end function decrypt_soap_payload(data, key, hmac_key, iv) aes_cbc, err = aes:new(key, nil, aes.cipher(128, 'cbc'), { iv = iv }, nil, 0) decrypted = aes_cbc:decrypt(encdec.base64dec(data)) decrypted = string.gsub(string.sub(lmcore.strtohex(decrypted), 33), '%x%x', function(value) return string.char(tonumber(value, 16)) end) return decrypted endI can get to the point where I can create the parameters for the payload encrypt request (example below), it’s just the encryption/decryption I cant do..
data="1234" key="\\S„ßÍ}/Ìa5!" hmac_key="¹jz¹2¸F\r}òcžÎ„ 臧.ª˜¹=¤µæŸ" iv=" {¬£áæ‚2žâ3ÐÞË€ú "I’ve found this aes.lua (https://github.com/openresty/lua-resty-string/blob/master/lib/resty/aes.lua ) module online, but that requires loads of others modules too, most notably ffi.lua. Which I’d ideally like to avoid.
I also came across this aes128.lua (https://github.com/somesocks/lua-lockbox/blob/master/lockbox/cipher/aes128.lua ) but i’m not sure how that handles all the other parameters e.g specify the cbc aspect etc.
Finally there’s this aes256ecb.lua script (https://github.com/idiomic/Lua_AES/blob/master/AES.lua) , could that be converted to aes 128 cbc and then used in the above?
Any help/advice on this would be appreciated..
-
Greetings,
I’m researching a migration from Vera+ to Hubitat C7 and want to know if anyone has successfully connected the Hubitat to the “HA Bridge” for local Alexia calls.
The HA Bridge does not callout Hubitat natively from what I see.Thanks for your assistance.
-
Hello,
Looking to all the dev's and tinkerers on this community for ideas on how to implement a solution to my problem. Kind of a long intro, sorry.Problem statement:
I have a geothermal heat pump that has a loop that is slightly undersized. During the cold weather months in the Pacific Northwest (one or two months of the year), the loop can get below 32 degrees. If it goes on for a few days, it can generate significant frost heaving in my yard and under the flagstone deck, Actually fixing the issue is cost prohibitive.Current mitigation:
I have DS18B20 tied into Home Assistant and monitoring the temp of the fluid coming out of the loop and if it drops below 35 degrees, MSR triggers a Fibaro Implant to add a resister into the external temp circuit and fool the Venstar to think the outside temp is below 32 degrees and issue a Heat Pump lockout and switch to AUX heat. While this is working fine and the AUX heat is only coming on once or twice a day, I would like to simplify the setup so it runs on something other than HA and MSR. I think they are overkill for my issue. Also want this to be independent of anything else in the house so it can stay behind if I am not around to maintain.I only have two inputs and one output:
Inputs: Loop temp, Furnace running
Outputs: Switch relay to drop resistance to external thermostat connection on thermostat.
Logic is super simple:
If temp is below 36 degrees and furnace is running, turn on relay
If furnace stops, turn off relay.
I am sure even I can figure that out on Python.Trying to determine the best platform for a set it and forget it black box that works with as close to zero maintenance as possible.
Options I have thought of are:
Pi zero with a GPIO controlled relay ESPHome (Not very knowledgeable about that platform, but willing to explore) Arduino Anything anyone else suggestsAny ideas are appreciated.
-
Hi all
Having some time off i’ve been able to invest a chunk in creating some plug-ins for Vera/OpenLuup, and will do what I can to post them in GitHub and add links on the Vera Community and here, for anyone who is interested.
But, being knew to any of this, I wanted to ask for any guidance on how and when I should share stuff ? How best do I share it ? Am I liable for anything I share? Is GitHub the best place ? What licenses should I associate with them ?
The latter is a strange one, as I don’t see how I can have any claim over the content/code itself, as I’ve learnt and leveraged so much from others..
To get the ball rolling I posted this on the ezlo/Vera site..
Jan 4 Luup Plugin - Energenie PMS LAN Switch Luup Plugin - Energenie PMS LAN SwitchHi To ensure I give back to this community, which has been educating me in all things Lua and Luup over the years (12+) I wanted to share some of the plugins I’ve built recently to see if any are of use/interest to others. The first one is for the Energenie PMS LAN Switch where I have built two...
-
Hey guys,
I just registered here in the forum and honestly… I’m new to the whole topic. I‘m a web developer, so I‘ve quite a bit experience with java, js, sql and so on. But that may not help a lot in this new field.
I‘m looking forward to develop my own smart home device and I‘m looking for starting point. In General the specs are like:
The device should work with WiFi, I want to integrate it into my network I want to write an own app to control it, it may find the device in my network I want the device to be offline usable, if possible (without internet connection) I want the device to broadcast information in my network like „water is empty“, so I can use push messaging in the App it should be ready to as well work with Alexa or Apple Home Kit or Google Assistant as I Plan to develop a skill for them.Can someone provide me with some information I could start with? Like - are there microcontrollers I could go with or is it to complex and I need a raspy? Which frameworks / languages / libs could I use? I know how to do the things on the app side but not on the device side.
-
Vainly trying to get to the bottom of the 10 - 15 second delay for TTS with the Alexa plugin (still) anyone have a list of the possible Alexa hosts? Just wonder if the one I have (layla.amazon.co.uk) could just be slow.
Any thoughts?
C
-
Just wanted to wish everyone a very Merry Christmas (or Happy Holidays, if that's your preferred salutation, or...?), and also a very happy, healthy and prosperous New Year 2022.
-
Hello. First, excuse my english, please. I bought a Vera Edge looking for some way to make a digital ambient thermostat that I could manage remotely without a phone home from the device side. I am very disappointed with that device because all the "official" help of the brand goes in the way of to sign in an account and work with their cloud. I have some computer, network and linux knowledge but all my tests with the hub and a Qubino Flush 1D Relay has been unsuccessful. I connected both and I got to make some basic functions but I see myself very far to get my target. This is my last try to get something before I log in an account in getvera.com and look if I can make some progress in my project following that way.
Can somebody tell me some place where I can learn the basic concepts of this system? Guides, books, videos... Whatever it can help me in my project.
Thank you.
-
Node-Red on my Linux Debian box seems to be having issues now. It keeps saying repeatedly "Lost connection to server, reconnecting..." in the web browser.
I recently updated nodejs for MSR, I wonder if that might be related:
"Bump recommended nodejs version to 16.13.0; versions 14 and 15 will continue to be supported through March 31, 2022"
Nodejs version = v16.13.1
I have tried updating Node-Red that is now version v2.1.4
I also updated npm to version v8.2.0
I am not sure how or where to look at the log file for node red?
This is the contents of the nodered.service file in this directory:
# systemd service file to start Node-RED [Unit] Description=Node-RED graphical event wiring tool Wants=network.target Documentation=http://nodered.org/docs/hardware/raspberrypi.html [Service] Type=simple # Run as normal pi user - change to the user name you wish to run Node-RED as User=stuart Group=stuart WorkingDirectory=/home/stuart Environment="NODE_OPTIONS=--max_old_space_size=1024" # uncomment and edit next line if you need an http proxy #Environment="HTTP_PROXY=my.httpproxy.server.address" # uncomment the next line for a more verbose log output #Environment="NODE_RED_OPTIONS=-v" # uncomment next line if you need to wait for time sync before starting #ExecStartPre=/bin/bash -c '/bin/journalctl -b -u systemd-timesyncd | /bin/grep -q "systemd-timesyncd.* Synchronized to time server"' ExecStart=/usr/bin/env node-red-pi $NODE_OPTIONS $NODE_RED_OPTIONS #ExecStart=/usr/bin/env node $NODE_OPTIONS red.js $NODE_RED_OPTIONS # Use SIGINT to stop KillSignal=SIGINT # Auto restart on crash Restart=on-failure RestartSec=20 # Tag things in the log SyslogIdentifier=Node-RED #StandardOutput=syslog [Install] WantedBy=multi-user.target
/etc/systemd/system/multi-user.target.wantsThanks
-
Hi @ll, last days I migrated my last zwave device from Vera to zwave js in homeassistant. Out of 150 devices 1 did not go well initially but reinterviewing did it directly. Most work was to find the ex and inclusion procedure, 3 times, click, clack, whatever. I must admit that Vera is Lighting fast!!!!! With only 3 devices left, those were my under the floor switches I had to do last.
Now I am totally gone from Vera, altui, luup, etc. There's nothing more left for me on this forum. And since it was one of my "routine sites" reading I will save a few minutes a day skipping it.
I thank you all for all the kind help, warm words and laughter about the ezlo flop :-).
I hooe you all will be safe and healthy and whish you all the best!
I will stay on the homeassistant forum.
Goodbye!
-
Morning all. Hope all are well. Been a bit of a trying time here, but nothing we can't deal with....
.....apart from this!My coffee grinder went punk yesterday (wasn't even being used) and took out the main breakers. Once it was isolated I got everything back on line, except on TKB smart plug which was in the same double socket as the grinder.
OpenLuup claims it's failed. Z-wave server can't see it but it responds to the button pushes physically as I'd expect. (i.e. the socket turns on and off, and the LED flashes to indicate it's in inclusion / exclusion mode)
My plan is to see if I can exclude it then re-include it in z-wave server. If that doesn't work then I'll bin it, but if it does work can I then re-number it to match the original device ID and not have to trawl through my reactors? Any chance?
TIAC
-
Some of you may know that I took at shot at building an alternate geofencing solution for Vera. The core of it was system agnostic, using the OwnTracks application and AWS lambdas to track devices and keep a central data, then disseminate that to the Vera via a websocket-based plugin. It worked with other apps as well, including Tasker and GPSLogger, but of the dozen people that were testing it, most used OwnTracks.
A lot was learned in the process, not the least of which is that the success of any such solution is highly dependent on the phone and its settings. Phone manufacturers love to set things up for the longest battery life, of course, but that's usually very anti-geofencing behavior. In the case of at least one brand, it was unusable and the settings could not be modified. It was also cost-prohibitive to maintain on Amazon, as AWS grabs a dime here and a dollar there and before you know it, it added $100/month to my AWS bill, which my wife deducted from my Scotch budget. Unacceptable.
But it's quite reasonable to use OwnTracks to a local endpoint, and I could pretty easily replicate the functionality as a local application, or maybe even as an additional endpoint built into MSR's API (still separate port and process, but in the package).
So the question really is... would you do it, or would you be too concerned about the security risks associated (e.g., dynamic DNS and NAT mapping in the firewall necessary for the phone to contact the service when not on LAN)?
-
Hello!
I want to trigger an event (like switching on a smart Zigbee power plug) when a regular light switch (that switches regular non-smart LED light bulbs) is flipped. Is there something I can put behind a light switch to achieve this? Or something to splice in between the switch and the light bulbs? A good option would also be Hue compatible.
Thank you!
-
Hi,
Is anyone aware of any way in which Bluetooth devices can be connected and controlled via a home automation controller, such as Vera / openluup (even NodeRed, HASS) etc ?
I recall Bluetooth was an original ‘feature’ on the Veraplus but that soon died a death, and was never heard of again.
What, if anything are people doing with Bluetooth ?
-
Hi,
I have a lua/luup piece of code that checks, if any motion sensors have been tripped within the last 20 mins, and if not then to let me know.
I then look at pinging TVs to see if they are on, in order to help rule out if someone’s just sitting still, and then I look at bluetooth sensors (RoomMe) and also Wi-Fi devices (UniFi) to help identify specific people’s active devices.
I know there’s no perfect solution, but I was wondering what are other people using ?
-
Considering how long I’ve been using HA systems, where I was a relatively early adopter of z-wave, I’ve never really explored the Z-Wave Classes and Commands.
Don’t get me wrong I understand (well at least I think I do) the overall objective and the design of the classes and the command, but my exposure to it has always been hidden behind a software/application layer.. No bad thing your might say, but the more I got to know the Lua language , the more I wanted to know more about the Z-wave Classes and Command - and how I could interact with them a little more directly.
FYI - I’m still very much in the learning phase, and welcome any insight/advice from those more experienced than me.
For this particular ‘How To’, I’m going to start off with a link to all the recorded z-wave classes and commands, this is a great place to see the length and breadth of what z-wave supports.
https://www.silabs.com/documents/login/miscellaneous/SDS13548-List-of-defined-Z-Wave-Command-Classes.xlsxMy first objective is to see if I can request a battery report from a device.. (Make sure your device support this class)
To do that I need to look up the Commands_Class for Battery, and note down it’s associated value, which in this case is 0x80
COMMAND_CLASS_BATTERY 0x80 Management ActiveAfter that, I then need to get the value associated with the specific command I want to send, which in this case is the Battery Get one from the following list..
BATTERY_GET 0x02 controlling supporting BATTERY_REPORT 0x03 supporting controlling BATTERY_HEALTH_GET 0x04 controlling supporting BATTERY_HEALTH_REPORT 0x05 supporting controllingThose two looks up have now provided me with the following two item values …
Battery Command Class = 0x80 BATTERY_HEALTH_GET Command = 0x04Next I need to send them to my Vera/Z-wave controller , specifying the z-wave ‘node’ I want to target (make sure it is the node number (alt.I’d, NOT the Device No.) , which in this case is node 3 (device no. 64) - using a command like the following....
luup.call_action('urn:micasaverde-com:serviceId:ZWaveNetwork1','SendData',{Node='3',Data='0x80 0x04'},1)Or externally..
http://192.168.1.10/port_3480/data_request?id=action&DeviceNum=1&serviceId=urn:micasaverde-com:serviceId:ZWaveNetwork1&action=SendData&Node=3&Data=0x80-0x04Any/all feedback welcome..
-
Hi
I came across this a while ago, but couldn’t get it to work at the time, however I was just checking it again, and noticed openluup was mentioned in some of the code, so I was wondering, is anyone on this forum using it ?
GitHub - steets250/vera-ring: Plugin allowing Vera controllers to connect with Ring devices. GitHub - steets250/vera-ring: Plugin allowing Vera controllers to connect with Ring devices.Plugin allowing Vera controllers to connect with Ring devices. - GitHub - steets250/vera-ring: Plugin allowing Vera controllers to connect with Ring devices.
-
So I live out in a rural area and there are no good internet providers besides Hughesnet, or using a mobile hotspot. My question is can you have a home network witha hub nut no wifi? I mainly would just want a few smart light switches, maybe a RGB Phillips HUE light here and there, and maybe even a camarea to watch my driveway and send me alerts when someone is there (while I'm there obviously) because we can't see our driveway from our living room. Was just curious to see if this would be possible or not. Our Verizon mobile hotspot works great while we are able to monitor it but sometimes it randomly shuts off even when it is plugged in. Any insight would be greatly appreciated.
Thank you.
differentiation
-
Trying to research the sweet spot post-vera. After a lot of research heres what I came up with, help me understand if this is correct.
I view HA as client / server with the server being my back-end Z-wave engine (Zway, Vera, hass-openzwave) and the client being the front end UI (OpenLuup, HASS, VeraUI, AltUI)
For me the key differentiator seems to be on the client side, particularly in regard to apps. That is those things that are not zwave but need to interact with my HA system (Nest, Alexa, Hue, Siri, Ecobee, Doorbird, video, weather, ect.)
It looks to me like OpenLuup has the strongest eco-system of apps, and largest matrix of support for what I need (without a monthly fee).
My plan is to migrate the Vera devices to a new zway "server" and then use OpenLuup with her apps. Am I on the right path?
I currently run a OpenLuup "client" "on" my vera "server" as a "bridge"
Am I correct in understanding that the zway server is currently the most proficient back-end engine?
TIA
|-<:) -
Hi prophead,
I think you understand correctly.
The best integration server, supporting the widest range of APIs is actually home assistant. Being open-source and having an enormous amount of developers and maintainers, I don’t actually foresee any commercial solution catching up to it in the short term.openLuup in terms of integration offers a lot too but not nearly to the same degree as Home Assistant. openLuup benefits from being able to run all of the plugins developed for vera for years. What it does have though is two main advantages: The automation interface, and scripting, what you call the front end, is far easier and very powerful with the use of lua. In that respect, many Home Assistant users end up running also Node Red which offers this similar advantage compensating for this weaker area of home assistant. The other advantage is, if you come from vera, is the ease of migration and familiarity... you can have all of your scenes and plugins pretty much seamlessly transferred over and now with the z-way bridge, you can also transfer the devices without including/excluding.
Now on the back end, the wireless stack and device manager, z-way and HomeSeer are both far ahead of the seemingly abandoned vera on the z-way side. On Zigbee almost anything is better than vera as it was never really invested in it. After trying pretty much every platform, I found z-way to be the most advanced, most flexible and most powerful zwave manager. It’s weakness is in the front end which is why I use openLuup there and have also bonded Home Assistant to openLuup manually to add all of the Home assistant integrations to openLuup while retaining and expanding my former vera codes and automation.
-
Thanks for this thoughtful and informative reply, it’s really helpful.
What do you have in HA thats not in OL? -
I have a lot of integrations:
BMW Connected drive (Car location, status, AC, lock control)
Eight Sleep
Brother Printers as sensors
Xiaomi robot and air filters
Facial recognitions on all my IPcams.
Foobot
I also use it as my zigbee bridge (using the vera's radio chip)
unifi POE switches so I can power cycle everything POE controlled.All of these are bridged back into virtual devices in OL. OL remains the master controller and HA is just a device bridge. It either triggers scenes, updates device variables on OL or executes device actions commanded by OL.
-
I have to ask; brother printers as sensors?
-
Yes:
-
-
You have a couple of local options:
And there are additional ones cloud based, one of them is:

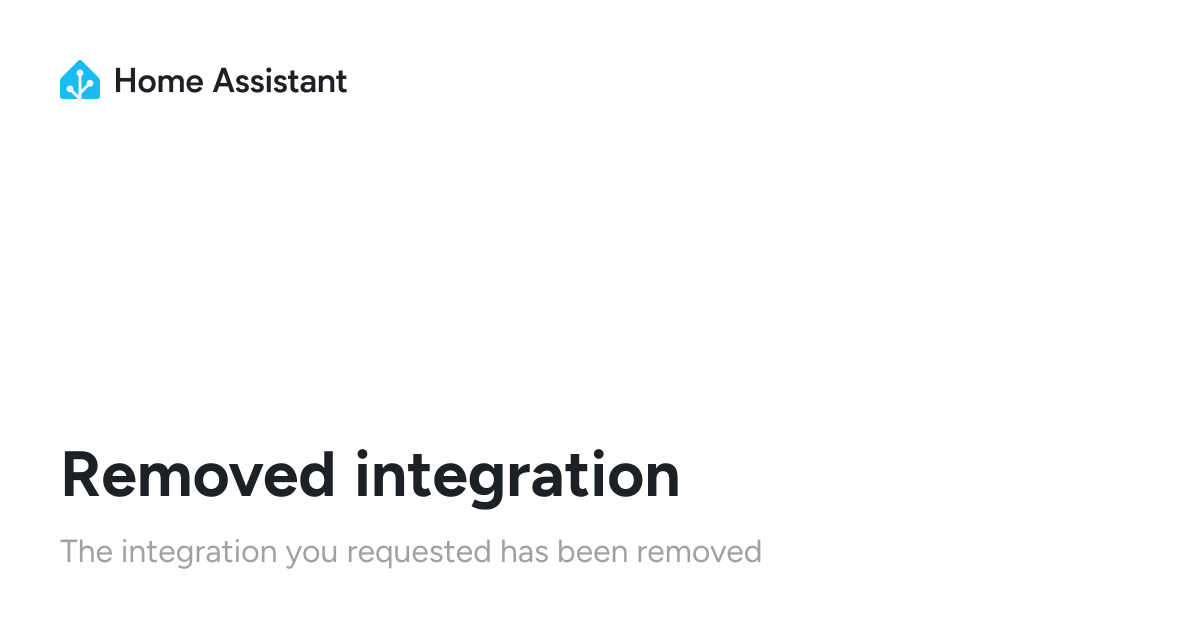

Microsoft Face Identify
Instructions on how to integrate Microsoft Face Identify into Home Assistant.
You will notice from the version introduced for these components that these are 2-3 or even 4 year old capabilities so forgive me for chuckling at what is going on in the "other place".
-
Just to show you how it looks like on the ALTUI/OpenLuup Dashboard.
And compare to the top screen of HA.
-
I'm having 6 outdoor IPCam and think to take the one you proposed for the "ring" at the front door!
Right now, all of them are just connect in Synology "Surveillance" but I would like to have something more "intelligent" for sure!
-
Can I run both HAss and openluup off of the same zway server?
-
You can. The API is not exclusive.
